SAND BAGS & DAM FABRIC

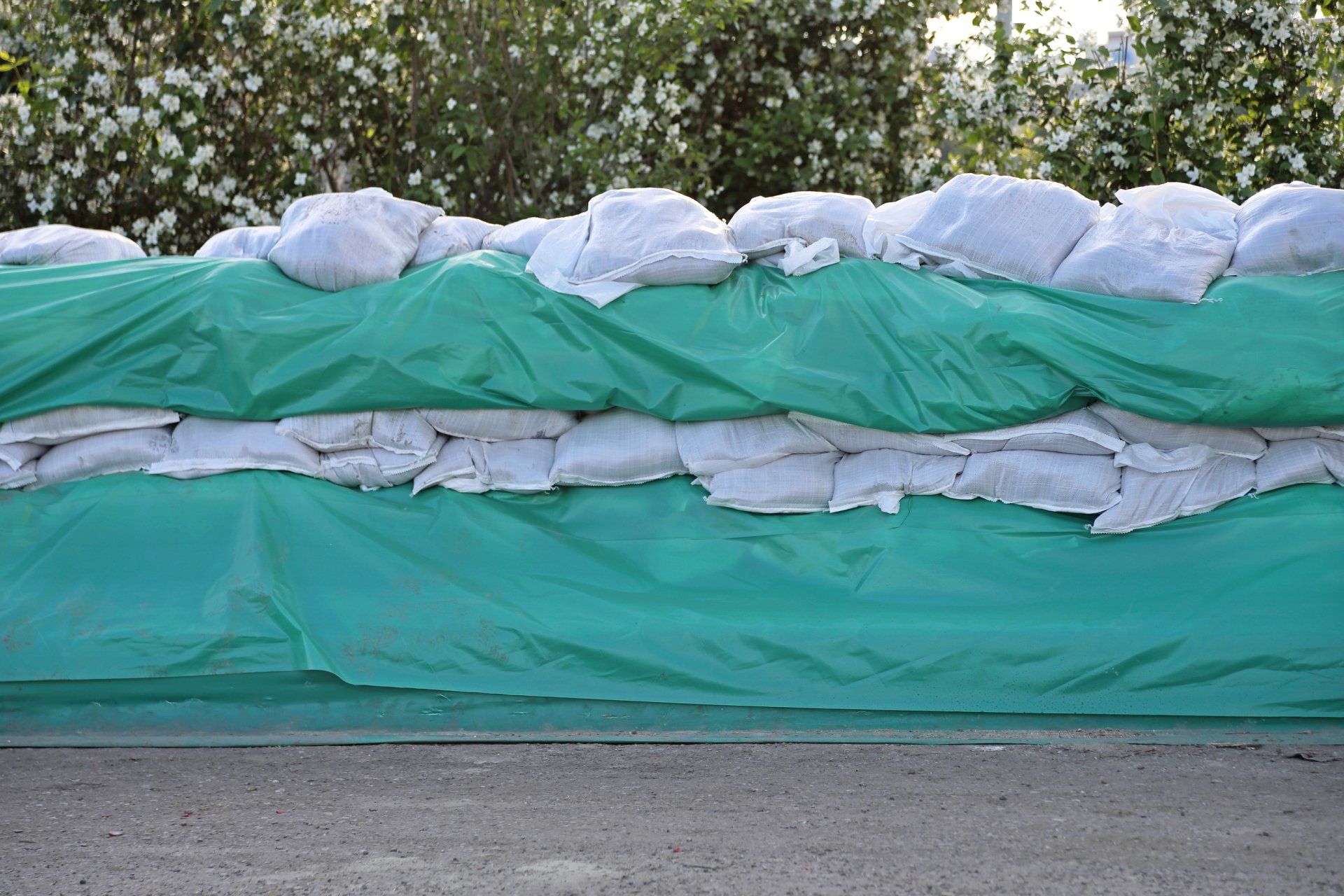

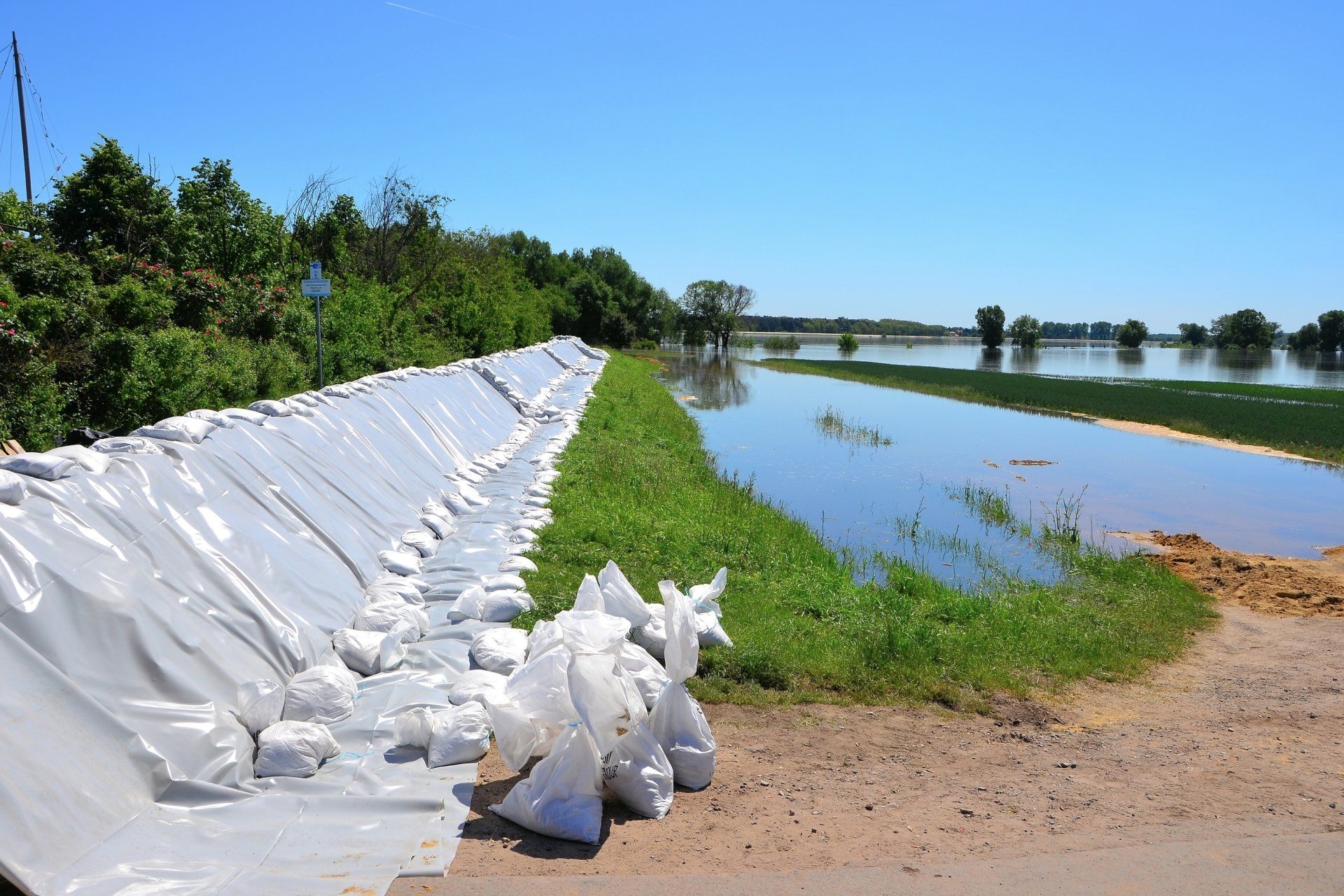

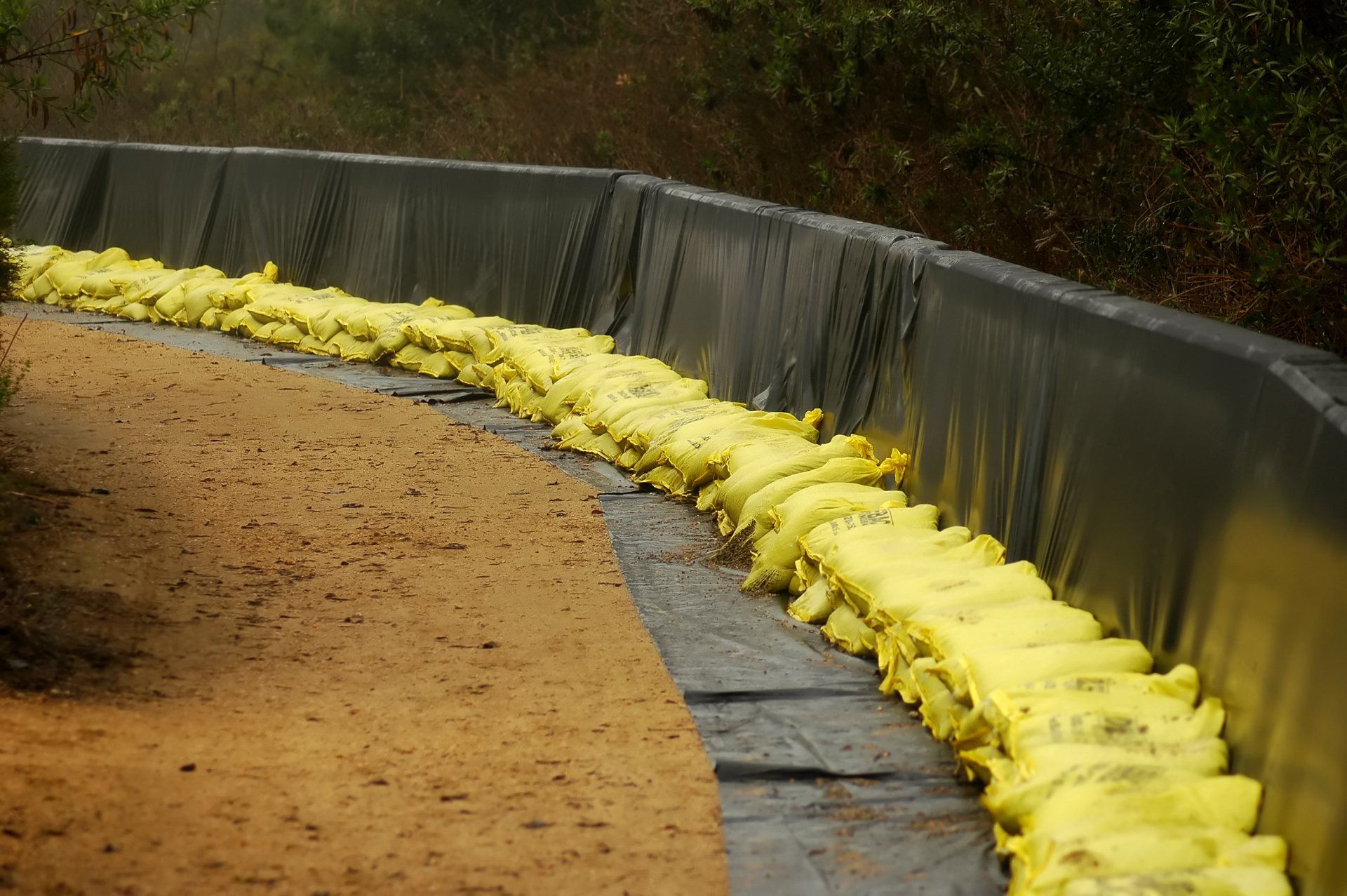

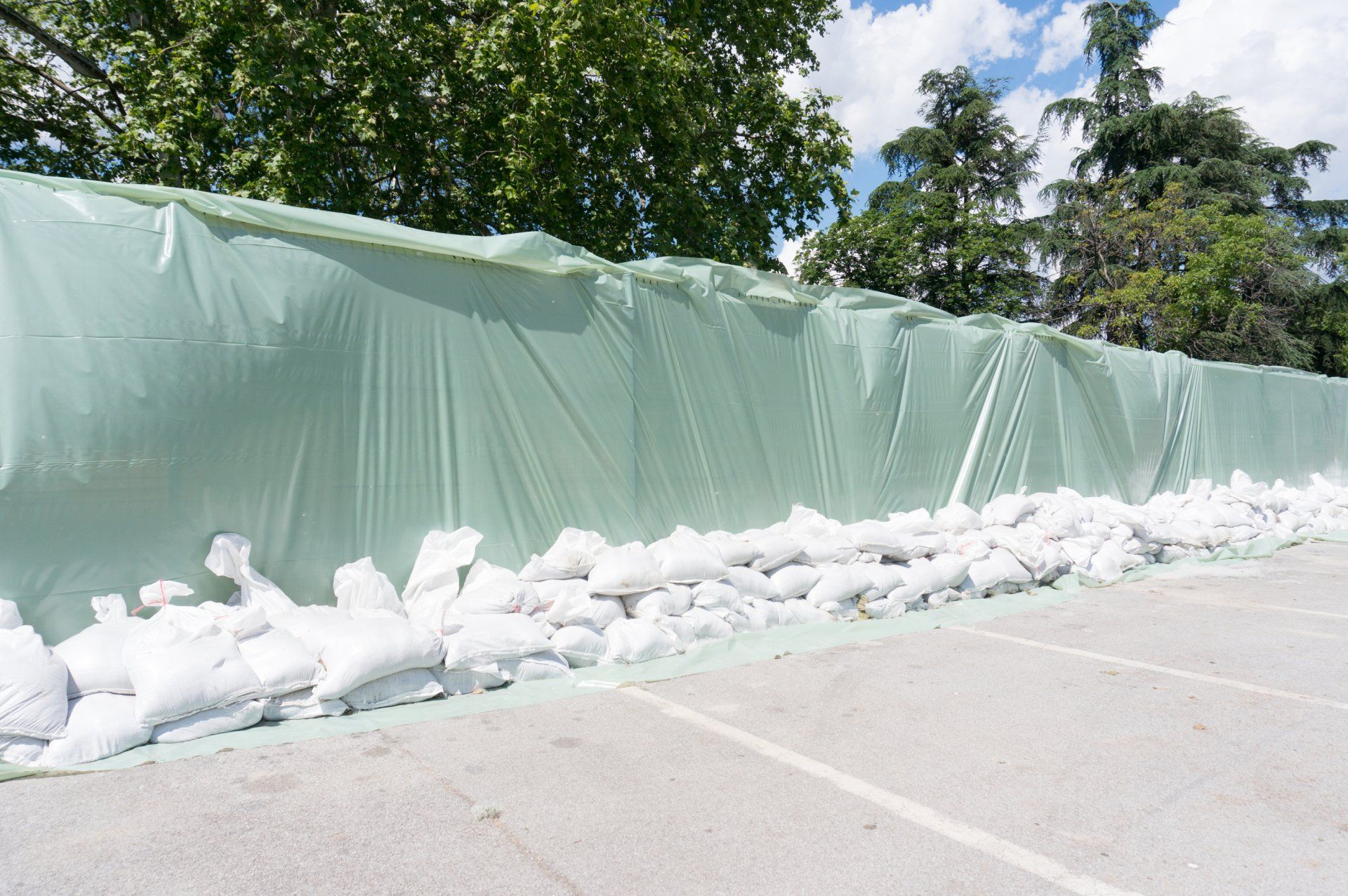

COVER-TECH dam fabric and flood control sand bags
Choose COVER-TECH for your flood control needs.  Our innovative concept of using special Dam Fabric along with our Sand Bags greatly reduces physical labour resulting in a more timely response during emergency situations.  Increase the number of feet laid per day because the Dam Fabric acts as a waterproof barrier so sand bags do not have to be set as tight and accurate.  Our Dam Fabric also allows you to turn existing structures such as fences, guard rails and cement road dividers into flood barriers.

TOLL FREE 1-888-325-5757


EMERGENCY SHELTERS

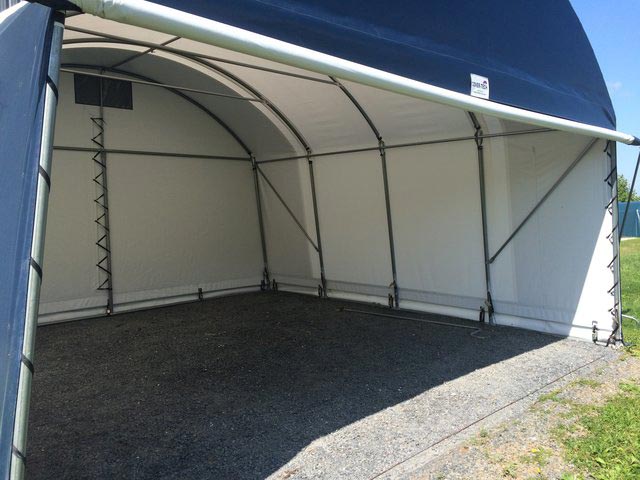

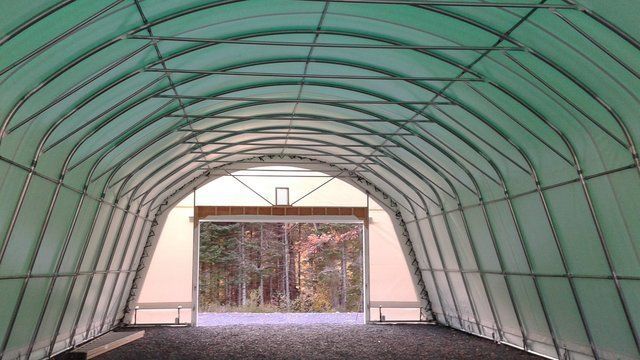

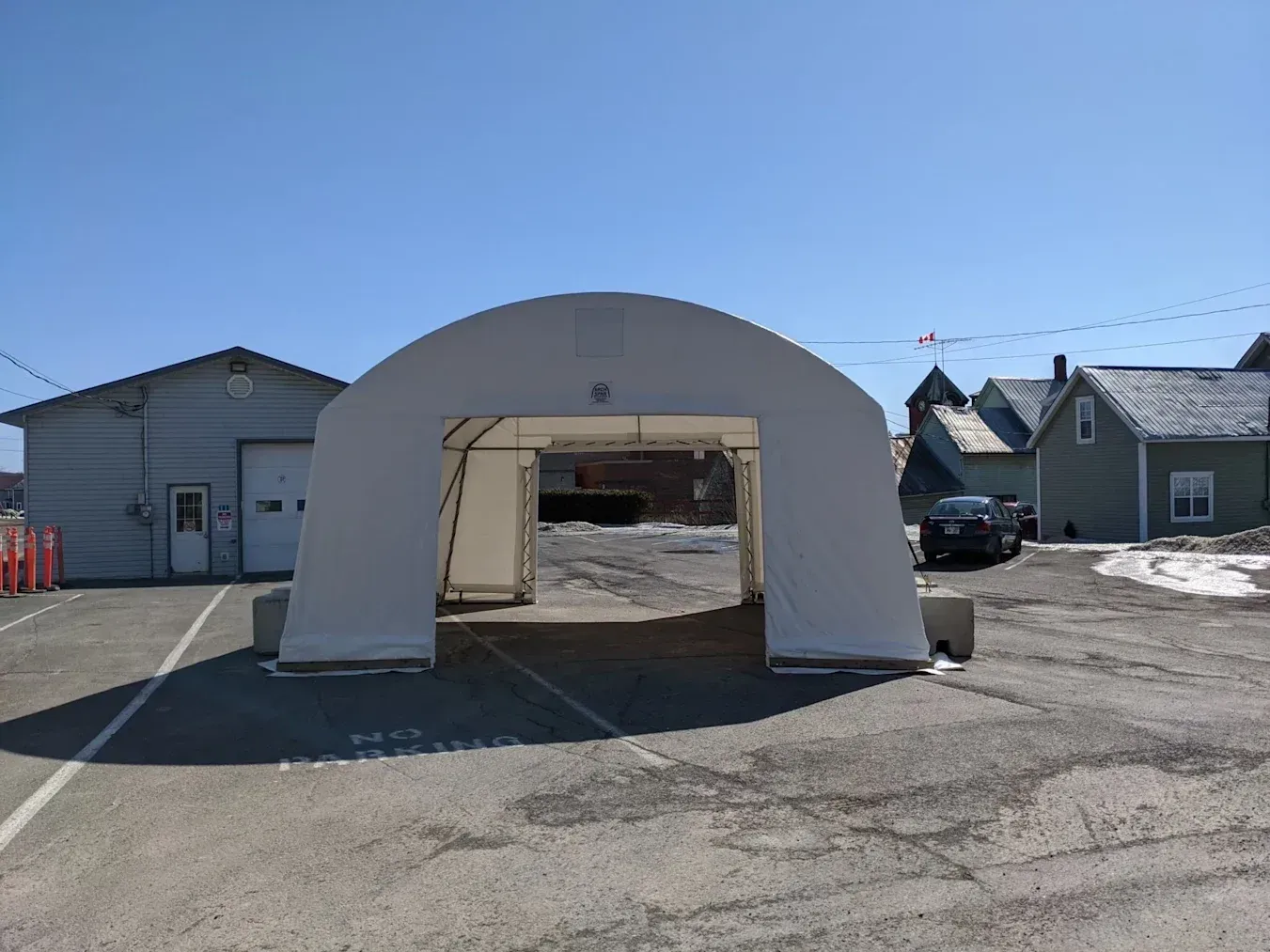

medical tents and storage for hospital

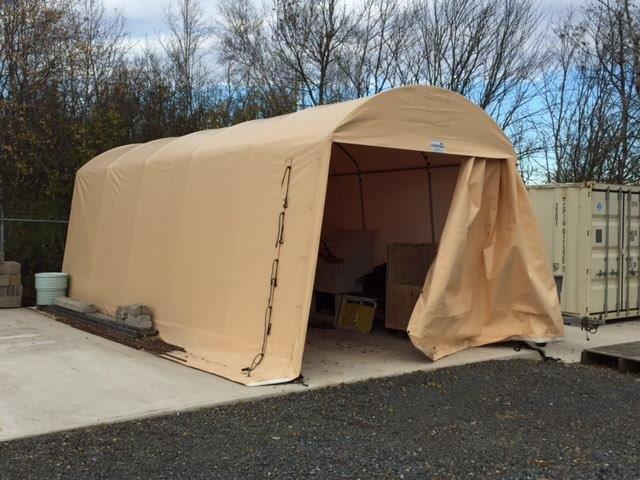

medical tents and storage for hospital and emergency relief

For other sizes and options please visit www.cover-tech.com/portable-garages

TOLL FREE 1-888-325-5757

EMERGENCY CONTAINERS

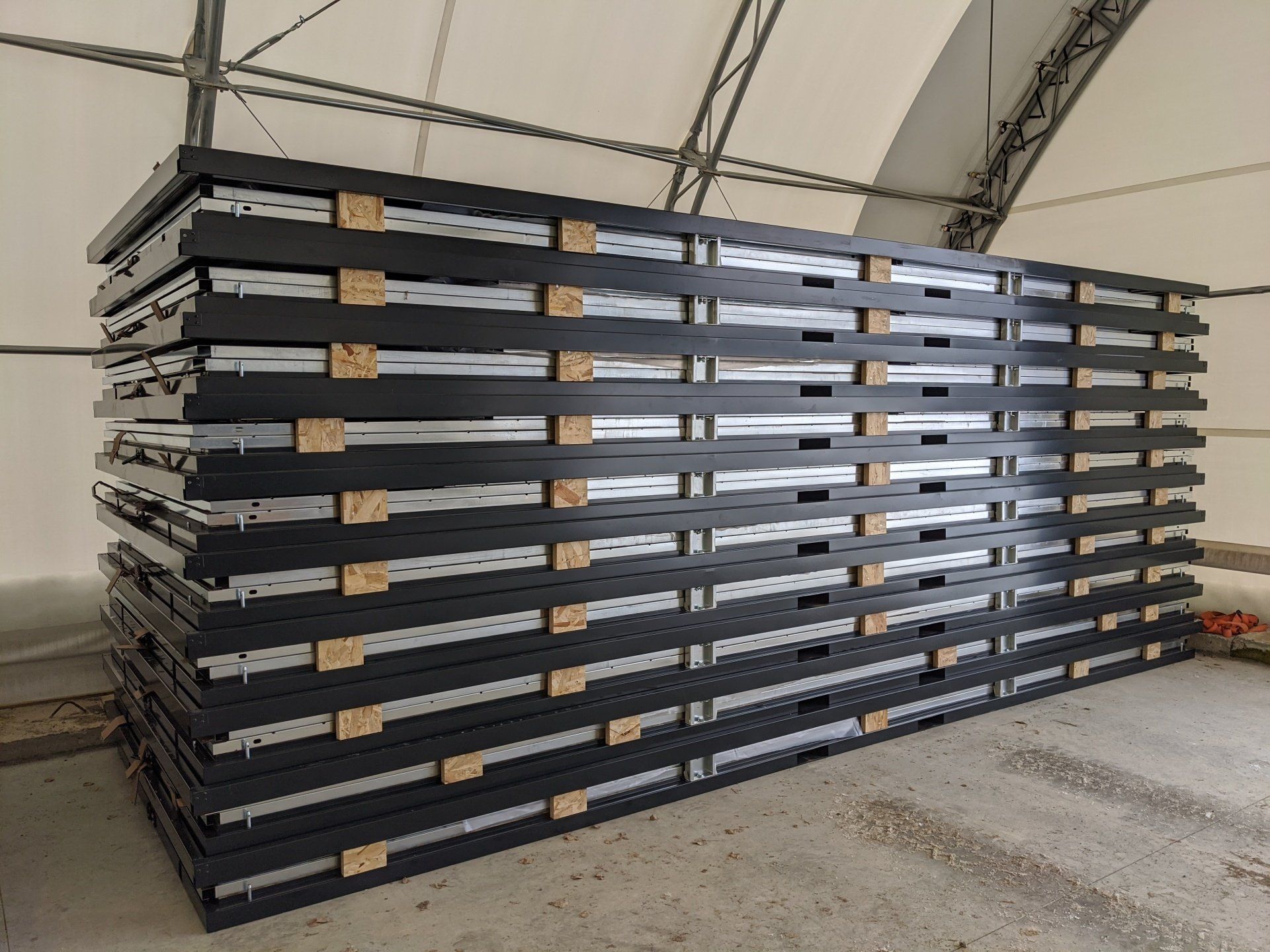

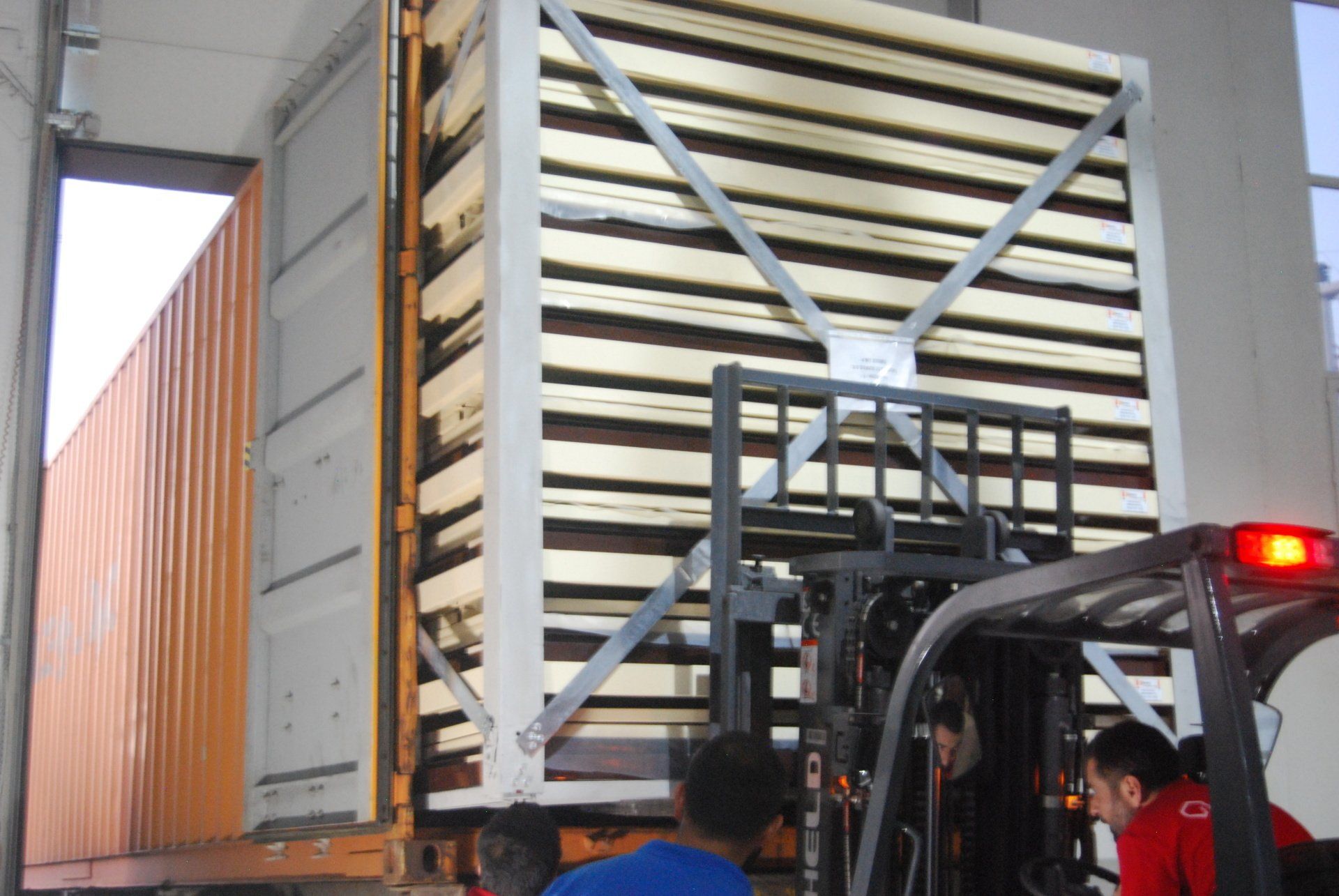

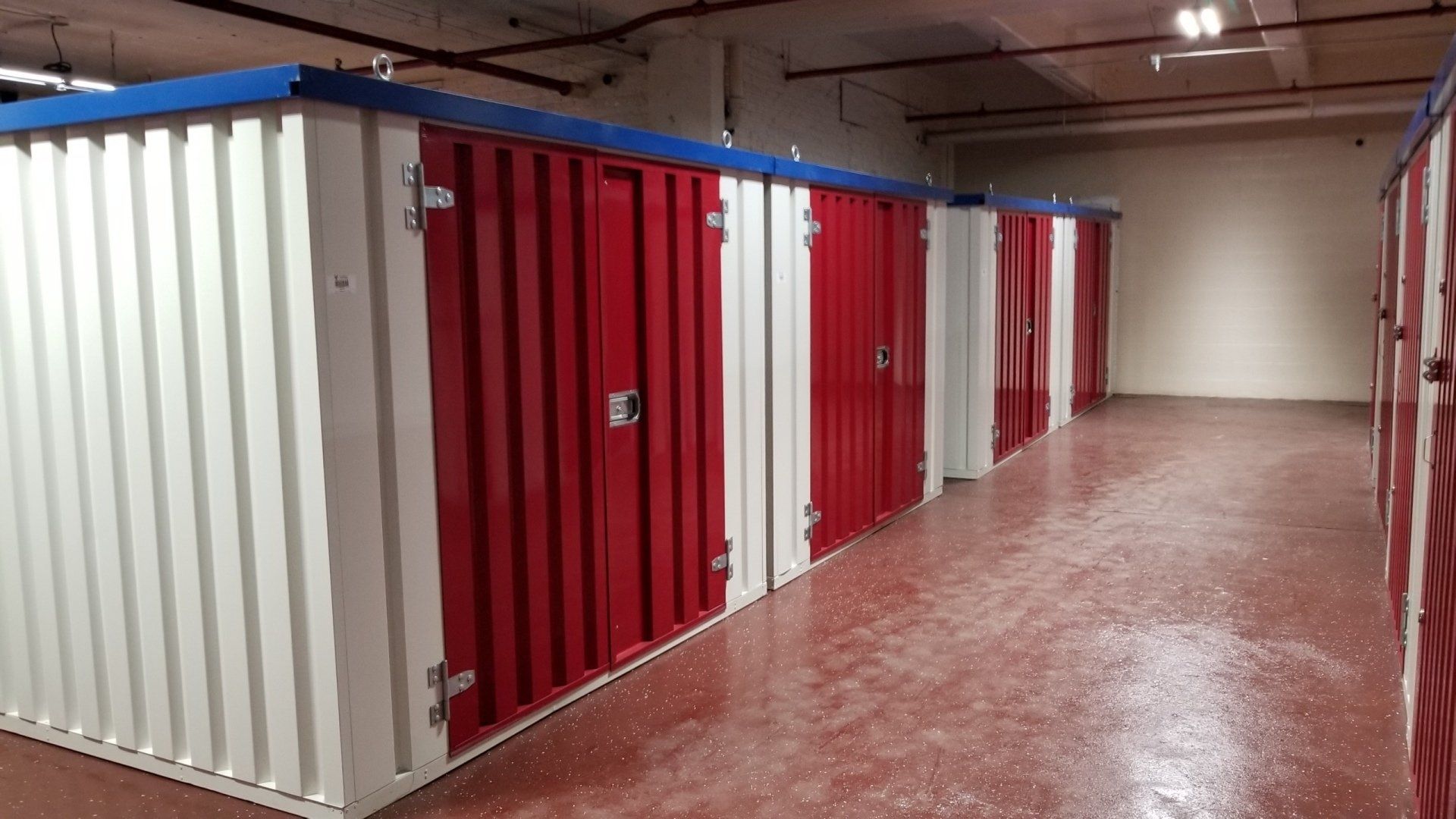

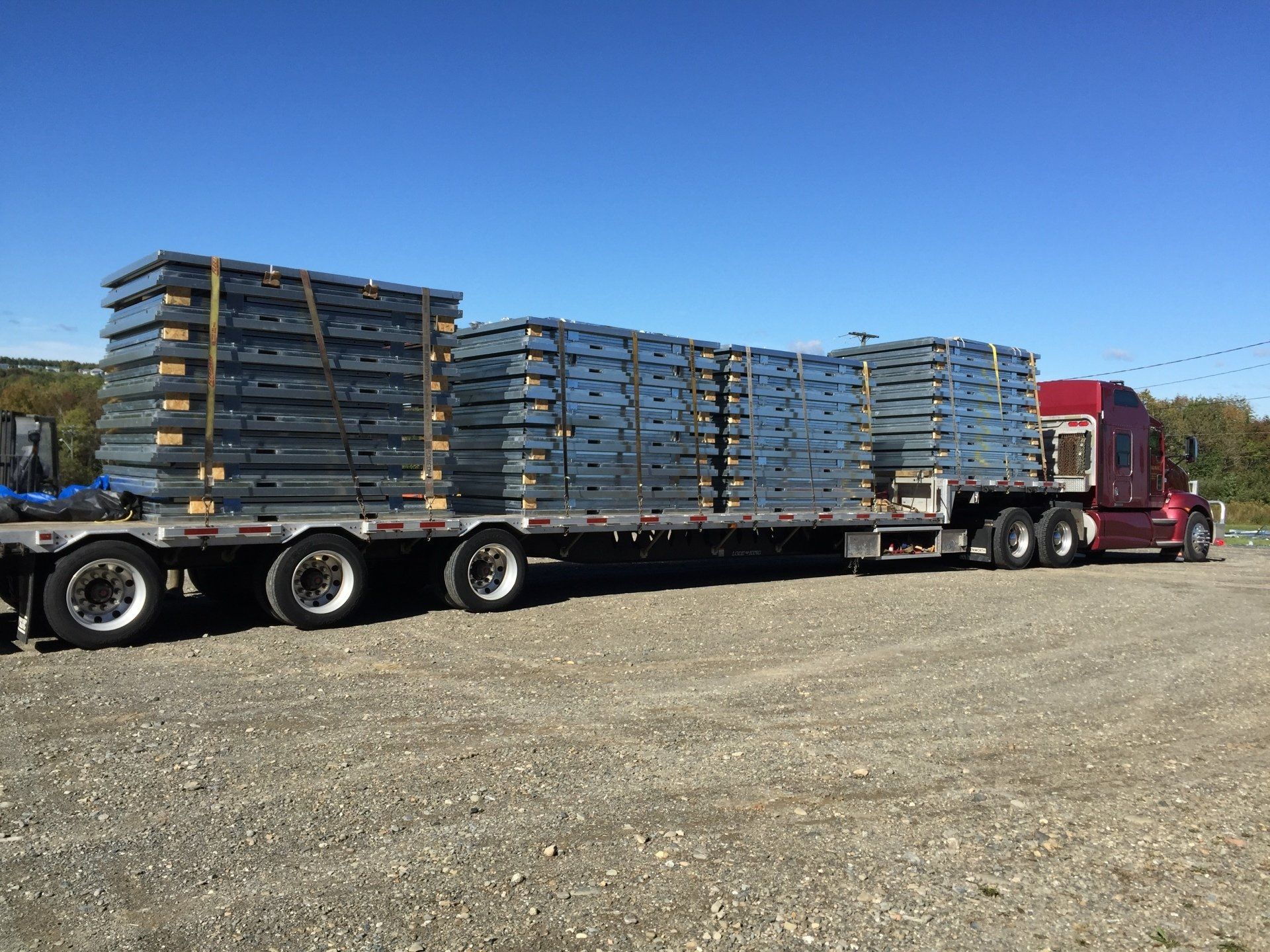

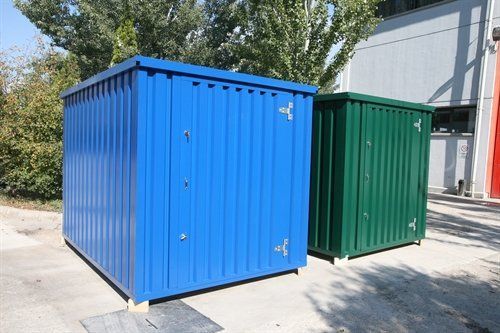

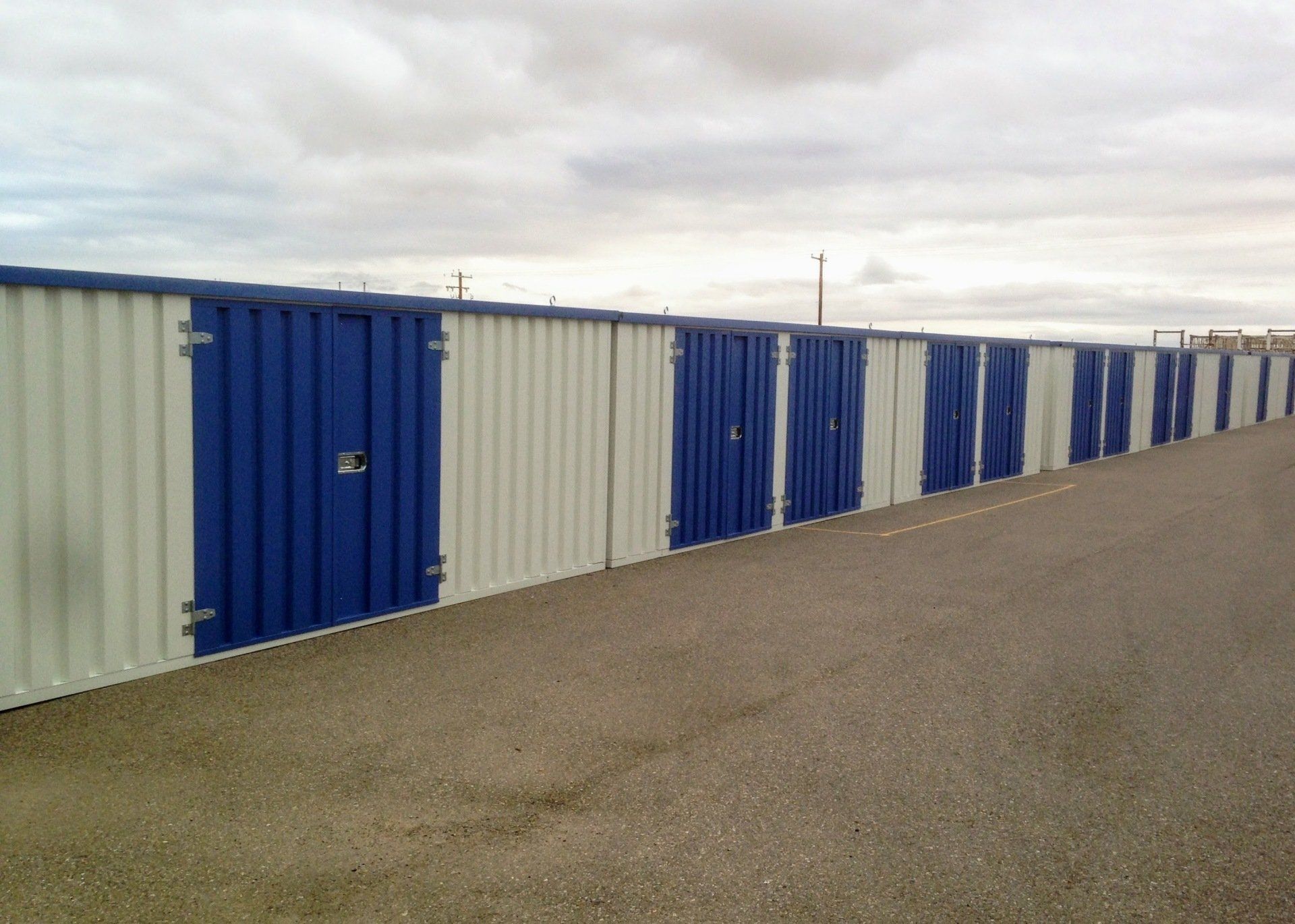

Flatpack emergency and disaster containers

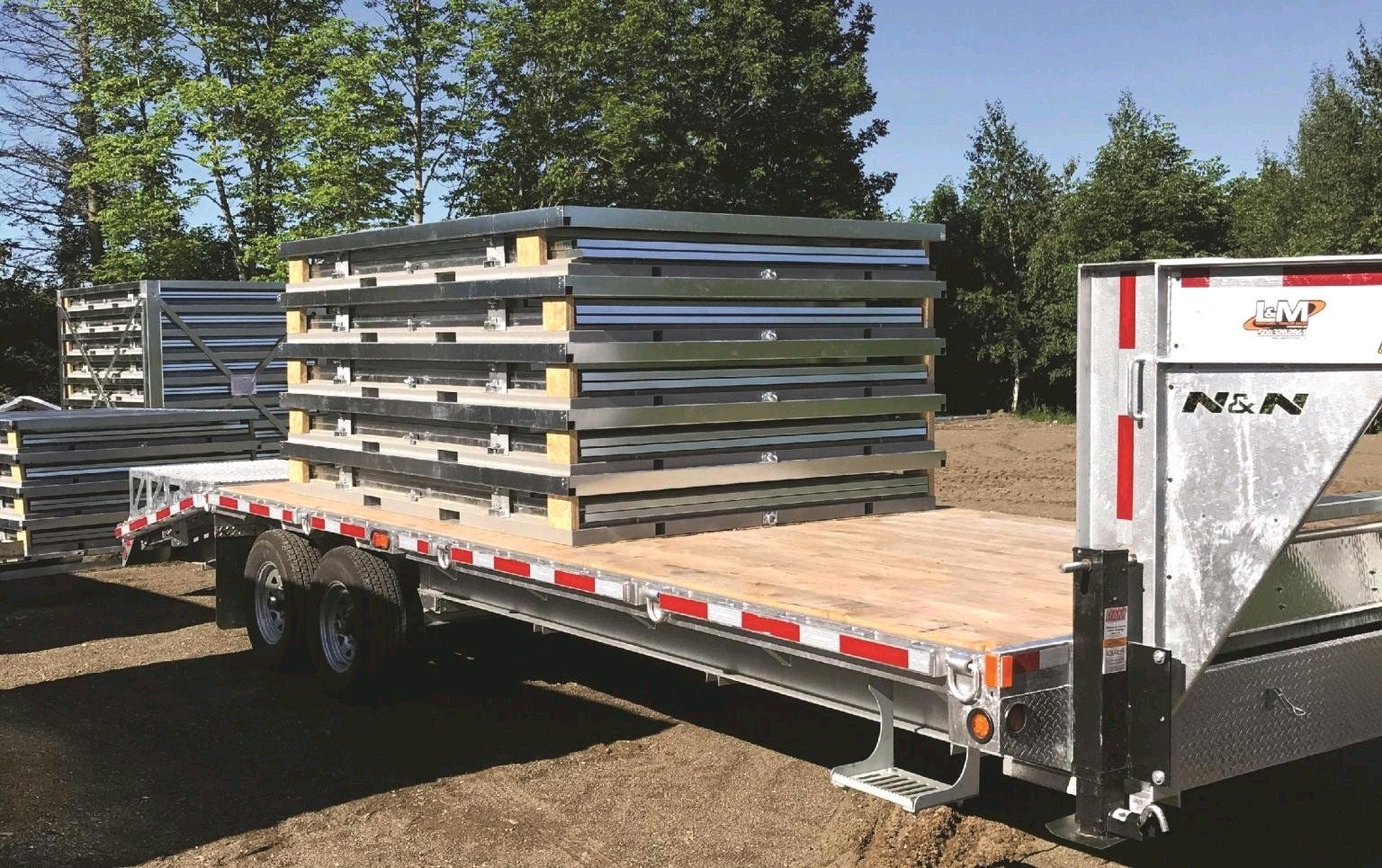

Flatpack emergency and disaster containers
View more


For complete specs and sizes please visit www.cover-tech.com/portable-containers

TOLL FREE 1-888-325-5757

EMERCENCY OFFICE UNITS

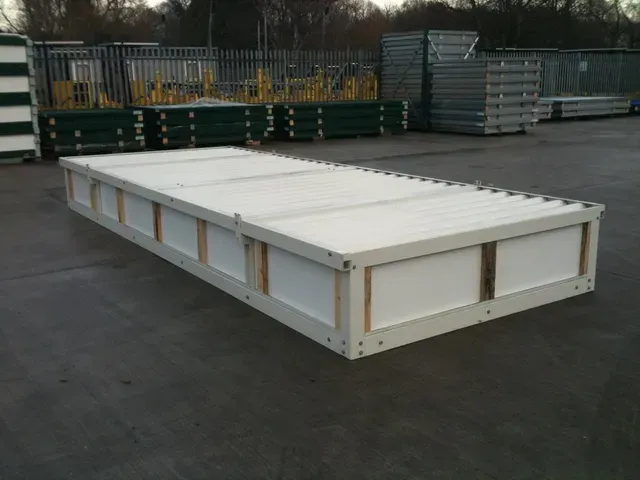

ICU units that are portable and flat packed
SPECIFICATIONS

OUTER PANEL:
Panels are composed of outer skin that shall be 0.50 mm painted with 5 micron primer, 20 micron finishing coat galvanized steel sheet, 50 mm thickness polystyrene insulation in between, inner skin that shall be 0.40 mm painted with 5 micron primer, 20 micron finishing coat galvanized steel sheet cold room sandwich polystyrene panel. Panels are Kingspan branded. Minimum polystyrene density is 16 kg/m³.

INNER PANEL:
Panels are composed of outer skin that shall be 0.40 mm painted with 5 micron primer, 20 micron finishing coat galvanized steel sheet, 50 mm thickness polystyrene insulation in between, inner skin that shall be 0.40 mm painted with 5 micron primer, 20 micron finishing coat galvanized steel sheet sandwich polystyrene panel. Minimum polystyrene density is 16 kg/m³.

DESIGN LOAD:
Snow Load : 240 kg/m² (Distributed load)
Wind Load : 75 kg/m² (Distributed load)

SUSPENDED CEILING:
Suspended ceiling is to be 8.0 mm thickness film coated gypsum board. Ceiling shall respect a design grid of 600 mm x 600 mm.

INSULATION:
OUTER PANEL : 50 mm thickness polystrene (d=14-16 kg/m3)
INNER PANEL : 50 mm thickness polystrene (d=14-16 kg/m3)
CEILING : 50 mm thickness polystrene (d=14-16 kg/m3)
FLOOR : 50 mm thickness polystrene (d=14-16 kg/m3)

FLOORING:
Anti-bacterial Linoleum in 4 mm thickness.

AIRLOCK AND FAN SYSTEM:
The main system is design to provide -15 PA negative pressure to atmosphere in treatment room and +15 PA negative pressure to atmosphere in the Airlock. The room will be air tight for preventing the circulation. Fresh Air fan filter unit designed for supplying filtered fresh air into clean rooms, having a built-in radial EC fan, suitable for installing on ceilings. A washable pre-filter will be installed before the fan inlet to protect the fan from dust and small particles and extend HEPA filter life. The EC fan will draw air from above and supply air into the room through the HEPA filter positioned under the unit as a laminar or near-laminar flow. Exhaust Air fan filter unit designed to throw indoor air out from the clean rooms, having a built-in radial EC fan suitable for installing on ceilings and wall mounting. A Hepa filter will be installed to the back of the fan outlet to clean/decontaminate the used indoor air.

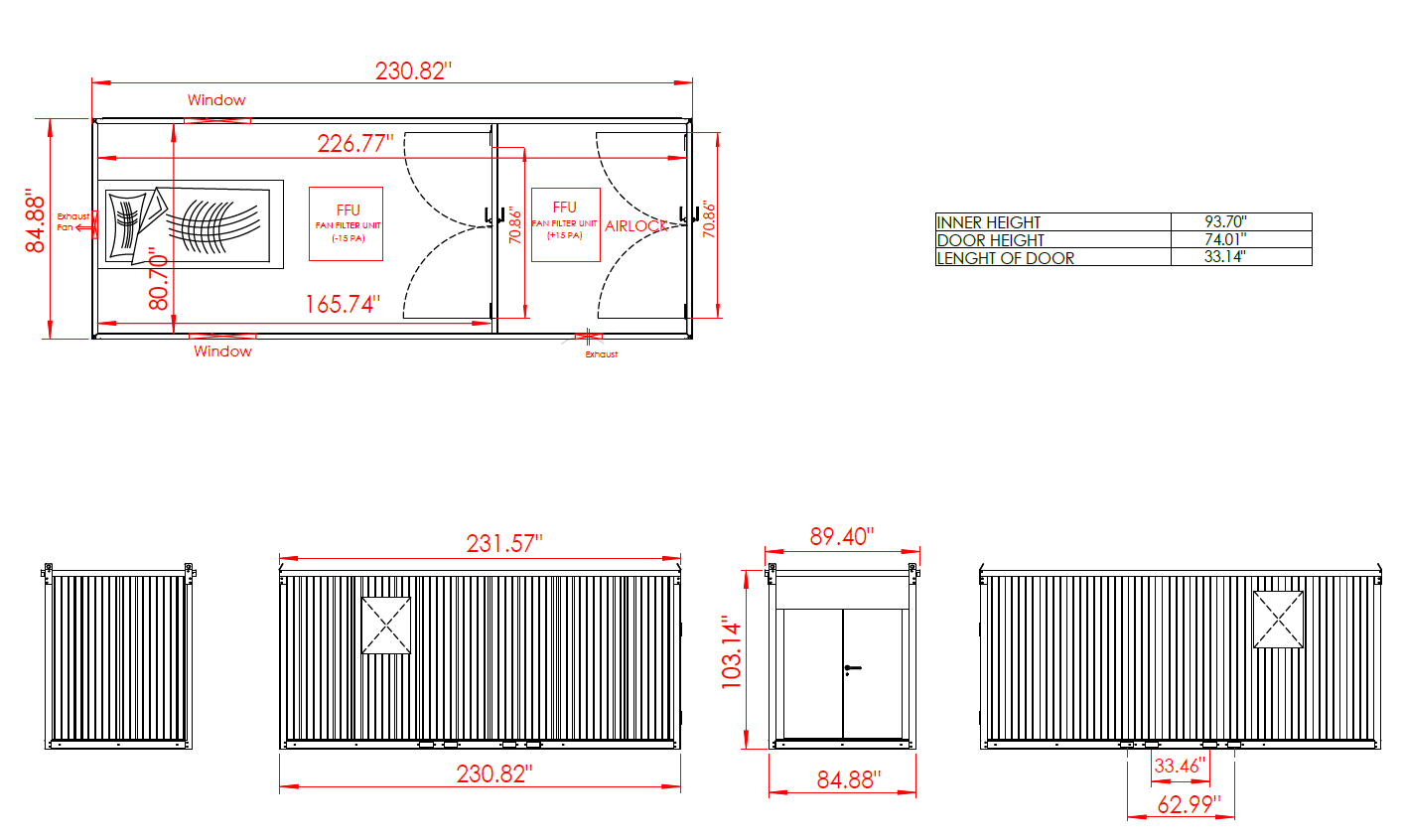

Portable ICU unit design
SPECIFICATIONS
OUTER PANEL:
Panels are composed of outer skin that shall be 0.50 mm painted with 5 micron primer, 20 micron finishing coat galvanized steel sheet, 50 mm thickness polystyrene insulation in between, inner skin that shall be 0.40 mm painted with 5 micron primer, 20 micron finishing coat galvanized steel sheet cold room sandwich polystyrene panel. Panels are Kingspan branded.  Minimum polystyrene density is 16 kg/m³.

INNER PANEL:
Panels are composed of outer skin that shall be 0.40 mm painted with 5 micron primer, 20 micron finishing coat galvanized steel sheet, 50 mm thickness polystyrene insulation in between, inner skin that shall be 0.40 mm painted with 5 micron primer, 20 micron finishing coat galvanized steel sheet sandwich polystyrene panel.  Minimum polystyrene density is 16 kg/m³.

DESIGN LOAD:
Snow Load : 240 kg/m² (Distributed load)
Wind Load : 75 kg/m² (Distributed load)

SUSPENDED CEILING:
Suspended ceiling is to be 8.0 mm thickness film coated gypsum board. Ceiling shall respect a design grid of 600 mm x 600 mm.

INSULATION:
OUTER PANEL : 50 mm thickness polystrene (d=14-16 kg/m3)
INNER PANEL : 50 mm thickness polystrene (d=14-16 kg/m3)
CEILING : 50 mm thickness polystrene (d=14-16 kg/m3)
FLOOR : 50 mm thickness polystrene (d=14-16 kg/m3)

FLOORING:
Anti-bacterial Linoleum in 4 mm thickness.

AIRLOCK AND FAN SYSTEM:
The main system is design to provide -15 PA negative pressure to atmosphere in treatment room and +15 PA negative pressure to atmosphere in the Airlock.   Fresh Air fan filter unit designed for supplying filtered fresh air into clean rooms, having a built-in radial EC fan, suitable for installing on ceilings.  A washable pre-filter is installed before the fan inlet to protect the fan from dust and small particles and extend HEPA filter life.  The EC fan will draw air from above and supply air into the room through the HEPA filter positioned under the unit as a laminar or near-laminar flow.  Exhaust Air fan filter unit designed to throw indoor air out from the clean rooms, having a built-in radial EC fan suitable for installing on ceilings and wall mounting.  A Hepa filter will be installed to the back of the fan outlet to clean/decontaminate the used indoor air.
