This chart indicates minimum width required to achieve certain projections with ADALIA X3M™ awning. In the event where the actual wall width is smaller than minimum requirements but you still require a longer projection.

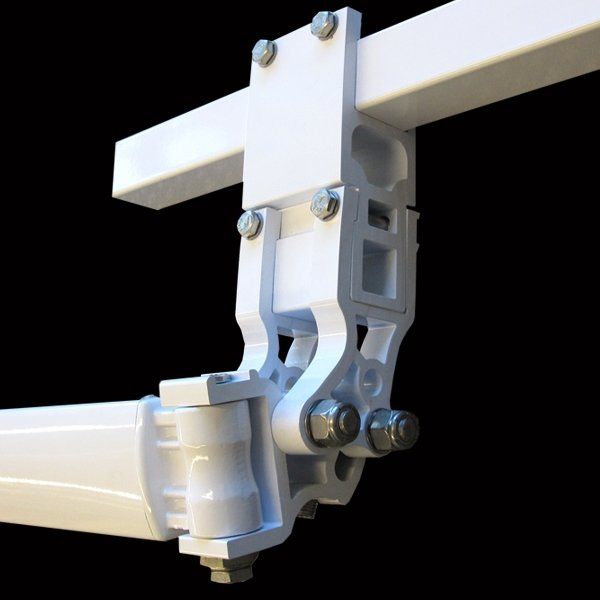

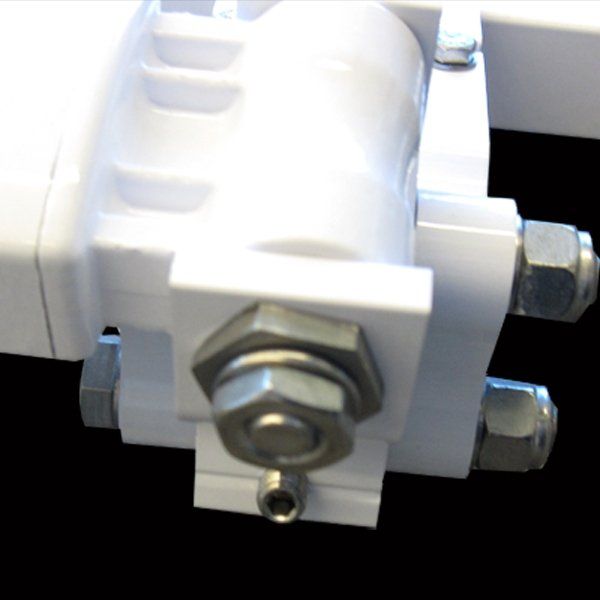

Innovatively designed, the Adalia Extreme awning arm shoulder consists of three components of high strength extruded aluminum that work in conjunction to provide lateral and vertical stability, and are virtually unbreakable.  It features dual inclination modes: a default setting of 5 to 45 degrees, and an optional 40 to 80 degree setting after a simple adjustment.

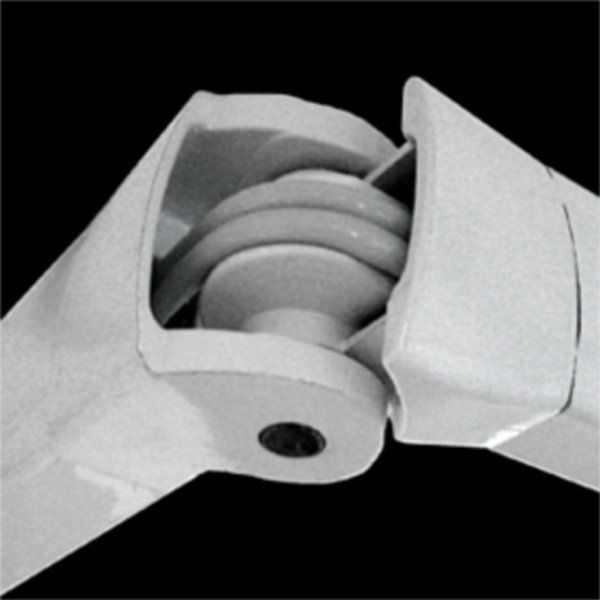

ADALIA X3M™ family of awnings arm employs extruded aluminum profiles, strong die-cast and thermally treated aluminum elbows with PVC protected double aircraft cables. The heavy-duty springs inside the arms apply tremendous force to hold the fabric taut when the awning is extended.

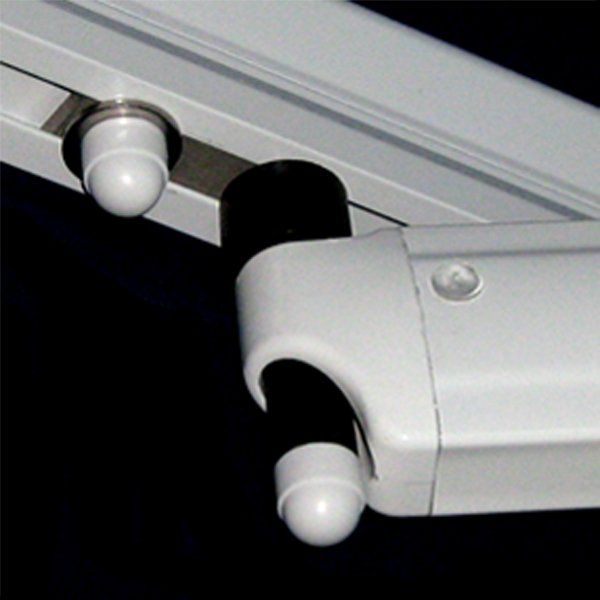

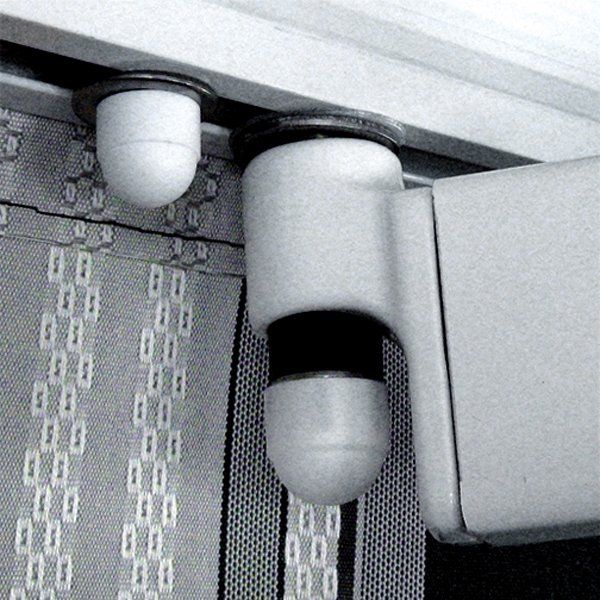

Fixing bracket is attaching lateral arm to the front bar. It uses shock-absorbing components to significantly extend its functional lifespan.

Front lead bar has a modern slim look with specially engineered internal reinforcement, and gives continuity to the fabric top while still adding strength to the overall system. The profile on the right is used for smaller awnings versus the profile on the left which is used for awnings wider than 16' and/or that project 11'8".

A strong, galvanized and powder coated 40mm square bar with 2mm walls (on the right) is automatically upgraded to an extruded aluminum 5mm wall, reinforced with architectural ribs square bar (on the left) that prevent it from twisting in large awnings with a projection greater than 10'.

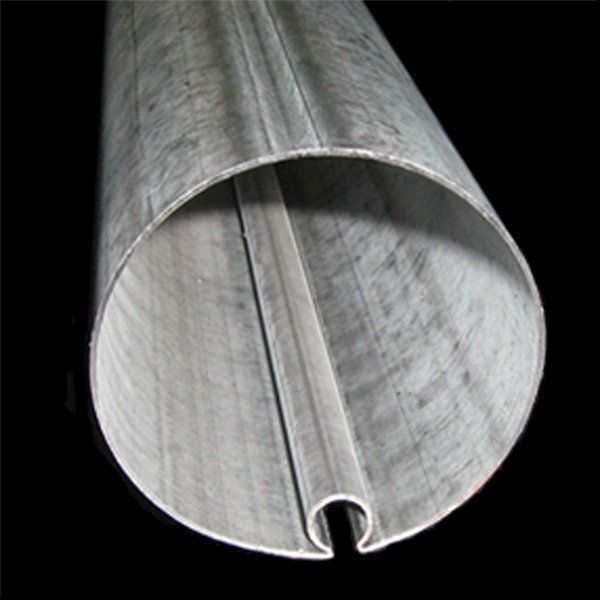

Adalia Extreme awning uses a structural galvanized steel roller tube with spring memory to re-bound to its original shape.

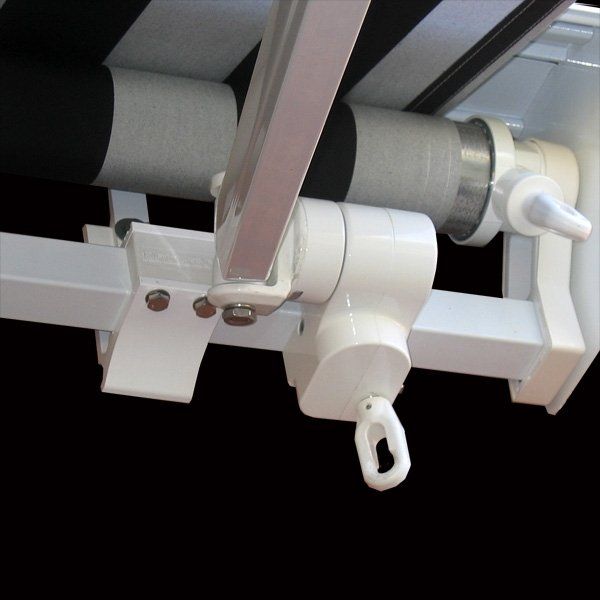

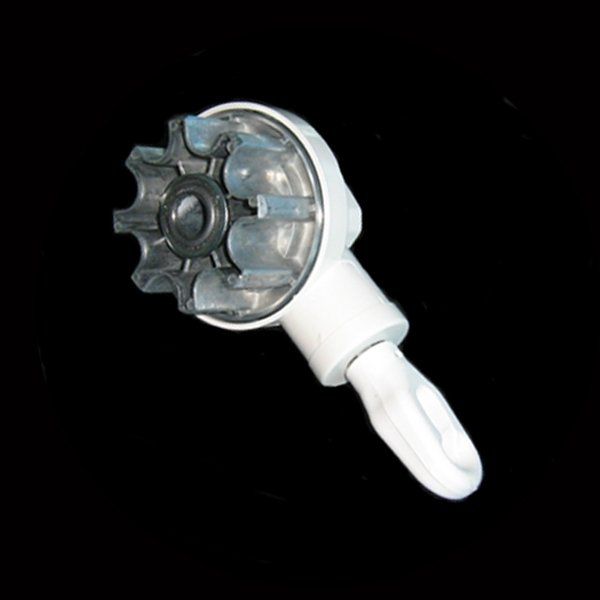

A speedy bevel gear with a 5:1 ratio for quick and easy use. A special feature of this gear is the stopper that prevents the awning from rolling up in the wrong direction.

Frames for ADALIA X3M™  and ADALIA X3M EXTENDA™ awnings are available in four different colours of powder coating: White, Ivory, Spinnaker Beige and Black. Other custom colours are available upon request. Please note: Spinnaker Beige and Black are $200 more.

This chart indicates minimum width required to achieve certain projections with Extenda model.

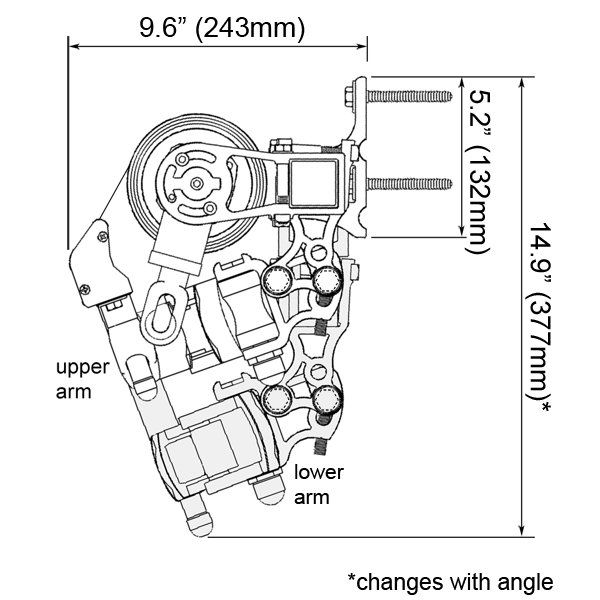

A solid aluminum extension block is connected to one of the arm shoulders. This technique offsets the arm shoulder, lowering one arm just underneath the other so they can cross without bumping against each other. The upper arm is secured to the square bar using the same arm shoulder as ADALIA X3M™ model.

ADALIA X3M™ family of awnings arm employs extruded aluminum profiles, strong die-cast and thermally treated aluminum elbows with PVC protected double aircraft cables. The heavy-duty springs inside the arms apply tremendous force to hold the fabric taut when the awning is extended.

A stainless steel hexagonal eccentric adjustment at the base of each Extenda arm shoulder allows effortless arm fine tuning during assembly.

The upper arm is attached to the front bar using a regular ADALIA X3M™ fixing bracket. The offset (lower) arm uses an extended fixing bracket reinforced with aluminum tubing and special shock-absorbing material. Having the extension on one side prevents the arms from hitting each other.

A strong, galvanized and powder coated 40mm square bar with 2mm walls (on the right) is automatically upgraded to an extruded aluminum 5mm wall, reinforced with architectural ribs square bar (on the left) that prevent it from twisting in large awnings with a projection greater than 10'.

It uses a structural galvanized steel roller tube with spring memory to re-bound to its original shape.

Front bar has a modern slim look with specially engineered internal reinforcement, and gives continuity to the fabric top while still adding strength to the overall system.

Frames for ADALIA X3M™  and ADALIA X3M EXTENDA™ awnings are available in four different colours of powder coating: White, Ivory, Spinnaker Beige and Black. Other custom colours are available upon request. Please note: Spinnaker Beige and Black are $200 more.

These structurally sturdy arm shoulders contain gearboxes that are synchronized inside the square bar by a solid steel rod and a series of bearings. This allows changing the pitch of both arms at the same time with the simple turn of the hand crank. The slope adjustment ranges from 0° to 55°.

ADALIA X3M™ family of awnings arm employs extruded aluminum profiles, strong die-cast and thermally treated aluminum elbows with PVC protected double aircraft cables. The heavy-duty springs inside the arms apply tremendous force to hold the fabric taut when the awning is extended.

Fixing bracket is attaching lateral arm to the front bar. It uses shock-absorbing components to significantly extend its functional lifespan.

Front lead bar has a modern slim look with specially engineered internal reinforcement, and gives continuity to the fabric top while still adding strength to the overall system. The profile on the right is used for smaller awnings versus the profile on the left which is used for awnings wider than 16' and/or that project 11'8".

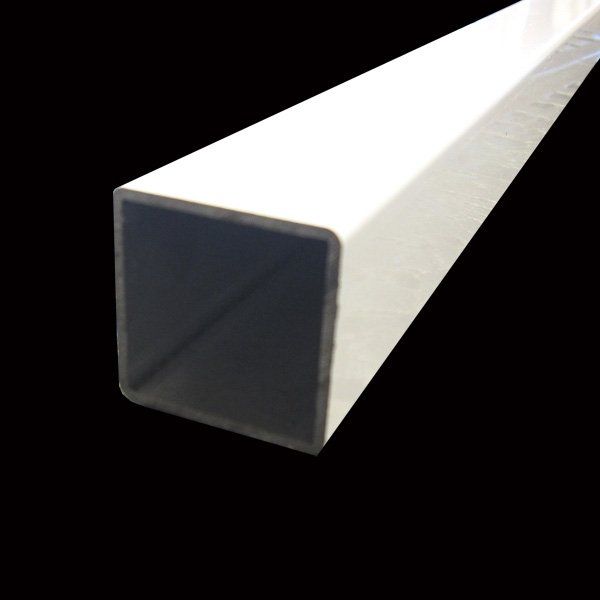

A strong, galvanized and powder coated 40mm square bar with 2mm walls.

It uses a structural galvanized steel roller tube with spring memory to re-bound to its original shape.

A speedy bevel gear with a 5:1 ratio for quick and easy use. A special feature of this gear is the stopper that prevents the awning from rolling up in the wrong direction.

Frames for ADALIA X3M™  and ADALIA X3M EXTENDA™ awnings are available in four different colours of powder coating: White, Ivory, Spinnaker Beige and Black. Other custom colours are available upon request. Please note: Black are $200 more.

Extremely strong arm shoulders made of high strength extruded and die cast aluminum sustain the weight and tremendous torques associated with a 13' projection. The PHYSIQUE XL™inclination can be easily adjusted using a hex key.

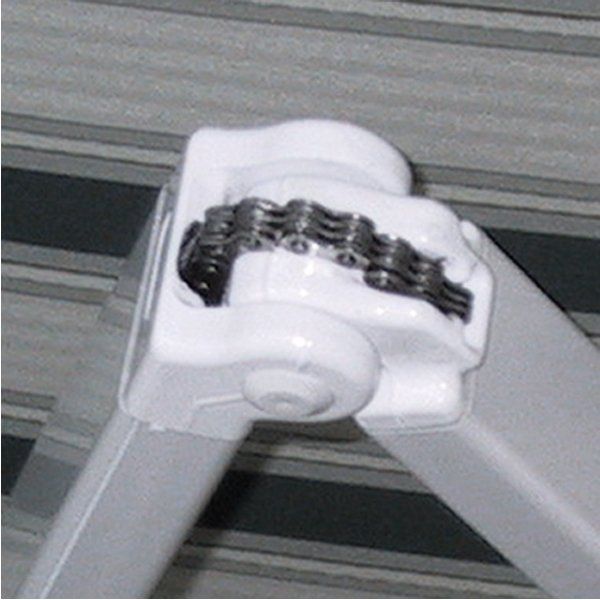

The PHYSIQUE XL™ arms are made from extruded aluminum profiles and forged elbow joints with stainless steel chains. Powerful springs keep the fabric taut when the awning is extended. Self-lubricating bronze bushings reduce frictional wear and tear.

The fixing bracket is designed to maximize the range of motion of the arms where they meet the front bar. Rolltec®'s signature shock-absorbing parts help extend the life of the awning.

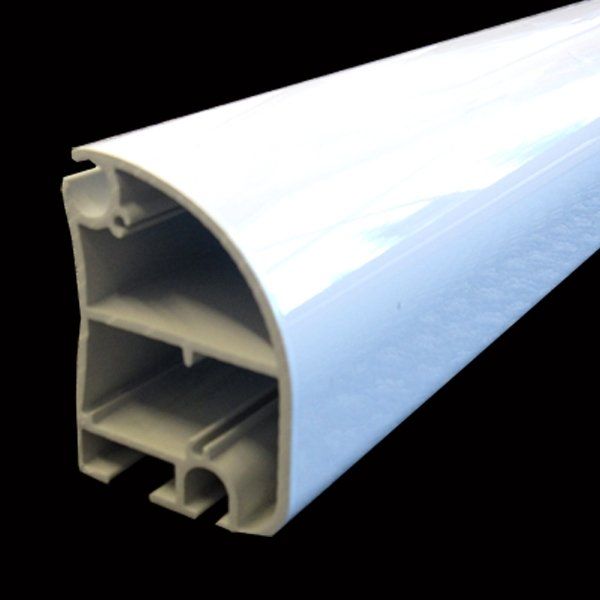

Larger style front bar has a modern slim look with specially engineered internal reinforcement, and gives continuity to the fabric top while still adding strength to the overall system

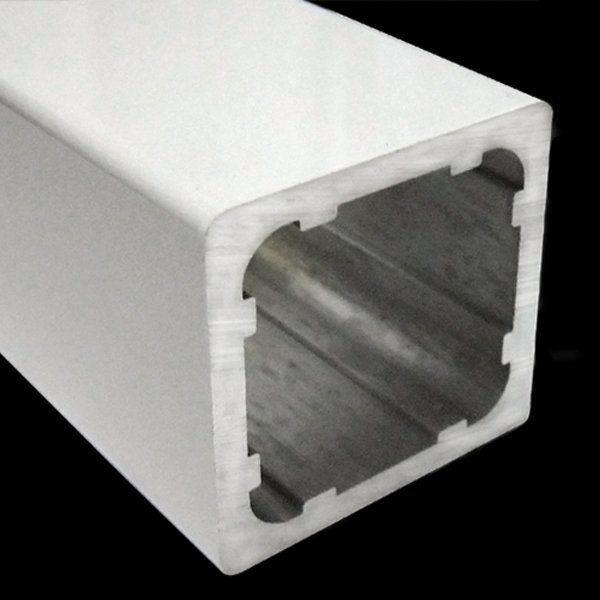

To alleviate the torsional loads associated with a 13'0" projection, each PHYSIQUE XL™ awning is built with a reinforced extruded aluminum square bar that is much stronger than commonly used steel bars.

We use a structural galvanized steel roller tube with spring memory to re-bound to its original shape.

A speedy bevel gear with a 5:1 ratio for quick and easy use. A special feature of this gear is the stopper that prevents the awning from rolling up in the wrong direction.
